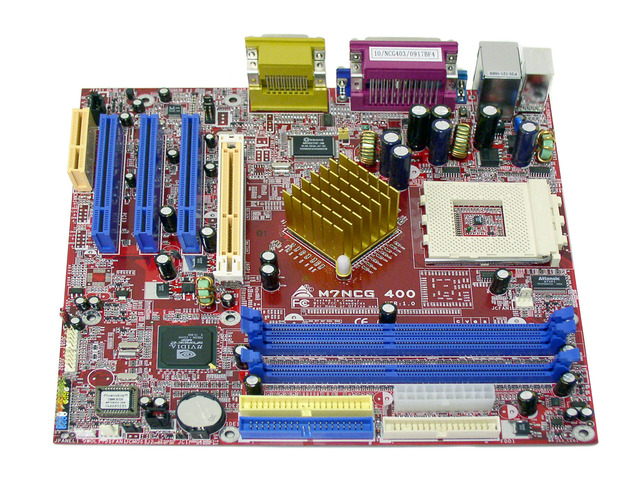

Pics and Specs:
Processor:
AMD Athlon XP, Athlon, Duron and Sempron processors
200 / 266 / 333 / 400MHz front side bus
• Chipset:
NVIDIA nForce2 IGP / MCP
• Memory:
3 x 184-pin DDR memory modules
Maximum 3GB total system memory
Dual Channel DDR 200/266/333
(For dual channel 128-bit performance, at least 2 modules must be installed.)
• Slots:
1 x AGP 8x
3 x PCI
1 x CNR
• IDE:
4 x EIDE devices
Ultra DMA 33/66/100//133
• I/O:
1 x Parallel, 1 x serial
1 x VGA
1 x PS/2 mouse, 1x PS/2 keyboard
1 x Game Port, 1 x Speak-out, 1 x Line-in, 1 x Mic.-in
1 x Floppy
4 x Front USB 2.0, 2 x Rear USB 2.0
1 x Front audio header
1 x IrDA header
1 x CD In header
1 x S/PDIF Out header (Cable Optional)
1 x TV-Out header (Cable Optional)
1 x Chassis intrusion header
1 x WOL header
• Video:
GeForce 4 MX
• Audio:
Realtek ALC650 6-Channel AC'97 CODEC
• LAN:
MCP NVIDIA MAC + Realtek RTL8201BL PHY
• Hardware Monitor:
CPU / System Fan Speed
System Voltage
CPU Temperature
Vcore,+3.3V,+5V,+12V
System Temperature (Optional)
• Size:
Micro ATX Form Factor
24.4cm x 24.4cm (W x L)
9.6in x 9.6in (W x L)
Any questions - Please PM me -
