2000 Jetta GLX - Part 1

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • 2000 Jetta GLX - Part 1


    Hi everyone, this is my First installation, please let me know what you think:

    CPU:
    • Via Blaxtream TC-1000 with 1 Ghz CPU, 266 Bus (DDR), VGA card, Sound Card and Lan Card on board.
    • 1GHz
    • Memory: 512MB DDR RAM
    • Hard Drive; 40 GB Hard Drive-5400 RPM and 8 M Cache
    • DVD Drive & CD/RW
    • Bluetooth on Board
    • Intelligent power control with voltage input of 7V -24 V.
    • Power Consumption: 30-48 W
    • 4 USB ports: 2 in the front and 2 in the back
    • Automatically shut down with 20 second delay: when the power of automobile is switched off, the computer is automatically shut down and it has 20 seconds delay to switch off the power supply for the computer.
    • Dimension: W 6 7/8" X D 7 1/2" X H 2"

    Monitor:
    • Lilliput GL701-TV/C/T :
    • 7-Inch 15:9 Wide Screen In-Dash TFT-LCD Touchscreen VGA Monitor
    • FEATURES:
    • In-Dash mount, motorized
    • Adjusting vertical angle
    • Touchscreen: USB interface
    • Universal TV tuner: PAL/NTSC
    • FM radio
    • 4-track 45W audio amplifier
    • 2 videos incl. one for rearview system display.
    • PAL/NTSC color system
    • High resolution- Display up to 1024x768 (H x V)
    • VGA input (15 pin D-SUB)
    • On Screen Display Control (Multi-language)
    • Full function infrared remote control
    • 2 RCA video inputs, Audio input
    • Speaker (for video mode) built-in
    • Backlight control available

    Extras:
    • Hard Drive 80GB USB
    • XM Radio
    • Remote Control Card Size
    • Mini TV Antena
    • GPS Slim


    Software:
    • System: Windows XP Pro
    • Front Face: RoadRunner
    • Skin: Alpine
    • GPS: iGuidence 3.0

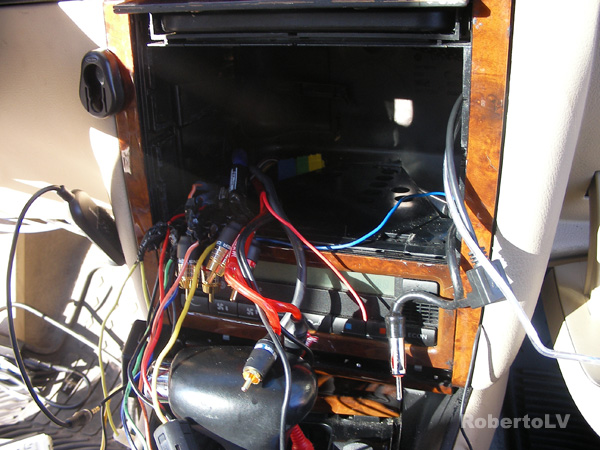

    Photos:









  • #2
    2000 Jetta GLX - Part 2

    Accesories:










    Sound:



    Video (is in Spanish):
    /

    Specials THANKS to ALL PEOPLE in this Forum, because I LEARNED ALL About CarPC Here.

    RobertoLV

    Comment


    • #3
      Very nice set up RobertoLV, congratulations. Where did you get your tiny keyboard? Can you tell me what model it is? Do you really think it's safe to hide it under money?
      Carputer Haiku (thanks Ian Hughes)
      Serious error.
      All shortcuts have disappeared.
      Screen. Mind. Both are blank.

      Comment


      • #4
        wow, i'm loving that tiny keyboard...where did you buy that??!
        Lexus SC400
        Subaru WRX Wagon

        Comment


        • #5
          Originally posted by ACleanSC4 View Post
          wow, i'm loving that tiny keyboard...where did you buy that??!
          It's not a tiny keyboard. It's just a really big dollar.
          For Sale: Carputer (CarPC) & RCA Y-Adapter
          Newsflash: Take a look at my unsold stuff above, thanks!
          Up Next: Make an OBD to Serial cable & Redo the "MMI buttons"

          Comment


          • #6
            Hi, Thanks for your comments,

            Big dollar?? hehehe, nice observation, I bought the Mini Keyboard in Fry's Computer, $25 Dollars, no bad.

            I have a little problem with the Internal Bluetooth, in ocassion detect my GPS and PDA and another ocassions nothing, very bad, I'll buy a USB Bluetooth.

            Next Step:
            EDVO USB

            Comment


            • #7
              Originally posted by RobertoLV View Post
              I have a little problem with the Internal Bluetooth, in ocassion detect my GPS and PDA and another ocassions nothing, very bad, I'll buy a USB Bluetooth
              Hey Roberto,

              If you're near the San Fernando Valley, I've got a brand new Slim Bluetooth Dongle for sale for $12.
              Lemme know if you want it and you're close by.
              For Sale: Carputer (CarPC) & RCA Y-Adapter
              Newsflash: Take a look at my unsold stuff above, thanks!
              Up Next: Make an OBD to Serial cable & Redo the "MMI buttons"

              Comment


              • #8
                Looks nice, but why do you have the ground loop isolator?

                A ground loop isolator is not a fix for ground loops, it is simply a tool to help you find where they are so you can fix them. Now that you know which component is causing the noise, you should reground it to a different point that won't cause a voltage differential between the ground points. Then you will have no more noise, and no more ground loop isolator.

                Comment


                • #9
                  Awesome, dude!!! Where in Mexico are you from?
                  Car PC progress: 60%
                  Pics coming soon!!!

                  Comment


                  • #10
                    Originally posted by spoonraker View Post
                    Looks nice, but why do you have the ground loop isolator?

                    A ground loop isolator is not a fix for ground loops, it is simply a tool to help you find where they are so you can fix them. Now that you know which component is causing the noise, you should reground it to a different point that won't cause a voltage differential between the ground points. Then you will have no more noise, and no more ground loop isolator.
                    Well I use the ground loop isolator to XM Radio, becuase before to use the XM Radio Give a very bad Noise when I runned my car, so this ground loop isolator is so easy to connect One side is the RED and WHITE Input, the Other Side RED and WHITE Output, NO POWER CONNECT and NO MORE NOISE, is excellent.

                    @ Chomo , México D.F. ¡a Web-O!

                    Comment


                    • #11
                      Originally posted by DJiK View Post
                      Hey Roberto,

                      If you're near the San Fernando Valley, I've got a brand new Slim Bluetooth Dongle for sale for $12.
                      Lemme know if you want it and you're close by.
                      Thanks for the Offer, but I'm in Las Vegas.

                      Thanks Man.

                      Comment


                      • #12
                        Originally posted by RobertoLV View Post
                        Well I use the ground loop isolator to XM Radio, becuase before to use the XM Radio Give a very bad Noise when I runned my car, so this ground loop isolator is so easy to connect One side is the RED and WHITE Input, the Other Side RED and WHITE Output, NO POWER CONNECT and NO MORE NOISE, is excellent.

                        @ Chomo , México D.F. ¡a Web-O!
                        I know what a ground loop isolator is and how they work. They are designed to be hooked up easily because the idea is that you only hook them up temporarily. You hook them to each component and when the noise goes away, you know which one it's coming from.

                        You could have a ground loop, you could have EMI or radiated noise, who knows. If you want to do an install right, eliminating noise is part of the process. Using a ground loop isolator is just a band-aid for the problem, it's not a solution, it just covers it up.

                        Never let power and signal leads cross or run near each other, if they must cross do so at a 90 degree angle, use ground points with the same electrical potential, use ground points that are as close as possible from the device being grounded, don't use factory wiring since they are often linked to many other electronics in the car, crimp/solder connections properly, etc. All these things are methods for properly installing a system so that you won't get any noise.

                        Comment


                        • #13
                          Originally posted by spoonraker View Post
                          I know what a ground loop isolator is and how they work. They are designed to be hooked up easily because the idea is that you only hook them up temporarily. You hook them to each component and when the noise goes away, you know which one it's coming from.

                          You could have a ground loop, you could have EMI or radiated noise, who knows. If you want to do an install right, eliminating noise is part of the process. Using a ground loop isolator is just a band-aid for the problem, it's not a solution, it just covers it up.

                          Never let power and signal leads cross or run near each other, if they must cross do so at a 90 degree angle, use ground points with the same electrical potential, use ground points that are as close as possible from the device being grounded, don't use factory wiring since they are often linked to many other electronics in the car, crimp/solder connections properly, etc. All these things are methods for properly installing a system so that you won't get any noise.

                          Thank You spoonraker, I'll to try to do that (everything about system cars is new for me).

                          Comment


                          • #14
                            Very nice. They keyboard looks like a Logitech Knockoff minus the PS2 Controller part.


                            What case are you using for the computer?

                            Comment


                            • #15
                              Originally posted by microchip13 View Post
                              Very nice. They keyboard looks like a Logitech Knockoff minus the PS2 Controller part.


                              What case are you using for the computer?
                              Hi Microchip, well the Case and all the parts is from Lilliput Company, they give me AIO (Monitor & CPU), so I just installed in my Car.

                              Roberto.

                              Comment
