  • Toyota Hilux - Revision 3

    EDIT 9/3: well this project is over. the car is no more.. totaled it earlier this week (6/2/06)
    off to find a new car




    Iv'e got to stop getting bored with my installs..

    I'm planning the 3rd now
    this time i'm going head unitless so I now have more room for the PC
    The Box is going in the Double din spot behind the screen

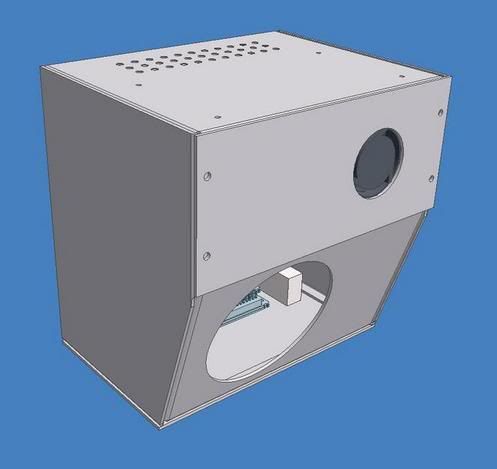

    here is the plan



    the top small 40mm fan will suck in, this will help keep the lilliput cool as it will be up agiant the box.
    the larger hole at the bottom will be for a 90mm fan pushing all the air out.
    the holes at the top should hopefully suck air past the cpu heat sink which is located near the top.



    inside the box.. thats the v1000 at the back and the opus 90w up the top, the HHD will go somewhere on the left side, havent worked that out fully yet. and this box allows me to have a pci card.. so i will get a wifi card eventually
    View My Blog


    Click for 2GB FREE on-line storage!

  • #2
    The box has begun,
    Here it is so far, I still have to cut all the holes in it for the fans and connectors..







    View My Blog


    Click for 2GB FREE on-line storage!

    Comment


    • #3
      Some pictures of the boards in the case. it was a VERY close fit but they fitted..





      View My Blog


      Click for 2GB FREE on-line storage!

      Comment


      • #4
        some more shots of the box with most of the things inside.





        View My Blog


        Click for 2GB FREE on-line storage!

        Comment


        • #5
          The test fit in the car to see if it will actually fit..
          needs a slight cutout down the bottom but dhould be all good



          View My Blog


          Click for 2GB FREE on-line storage!

          Comment


          • #6
            looks good so far. any pics of the car??

            Comment


            • #7
              yeah in my avatar
              View My Blog


              Click for 2GB FREE on-line storage!

              Comment


              • #8
                Updated pictures.. 13/2/06
                View My Blog


                Click for 2GB FREE on-line storage!

                Comment


                • #9
                  looks awesome. nice fab work. i really like the placement. really utilizes every inch of space.

                  you got lucky on that fit! lol.

                  Comment


                  • #10
                    amazing work. do you have a picture of the final install?

                    Comment


                    • #11
                      Originally posted by Escalade182
                      you got lucky on that fit! lol.
                      luck had nothing to do with it
                      no i lie.. it did

                      Originally posted by trd-4runner
                      amazing work. do you have a picture of the final install?
                      the last pic is where im upto now..
                      View My Blog


                      Click for 2GB FREE on-line storage!

                      Comment


                      • #12
                        Really nice work! When will it be finished?
                        Renault Megane...the OEM look

                        The Lost in Europe Ford Escort

                        Comment


                        • #13
                          Originally posted by Cris
                          Really nice work! When will it be finished?
                          soon i hope..
                          all the cd's in my car are scrathed
                          View My Blog


                          Click for 2GB FREE on-line storage!

                          Comment


                          • #14
                            What program did you use to draw it out like that?.. thats a great looking fit

                            Comment


                            • #15
                              autodesk inventor
                              View My Blog


                              Click for 2GB FREE on-line storage!

                              Comment
