Thread: Custom USB tyre pressure monitoring interface

  1. #731
    Variable Bitrate
    Join Date
    May 2006
    Location
    Belgium
    Posts
    261
    Hey Robby,

    i tried to pair again, waiting longer and putting the receiver closer to my tires (+- 40cm), however, i was still unable to pair em...

    i guess the only thing left i can do is make that antenna thing?

    Greetz

    Dj NRG

  2. #732
    Newbie
    Join Date
    Apr 2005
    Location
    Netherlands
    Posts
    15
    Hello all,

    I've been following this thread from the moment I found it and I have a couple of questions.

    1: would it be possible to have a SMD PIC instead of the through mount version?
    2: is the waeco set compatible and if so what are the connections that need to be made?

    I want to make my own PCB but as I don't have a PCB driling tool I would like to make a full SMD PCB, and just to save me some money I would rather buy the waeco set than the 3rd eye one.

    Gerard

  3. #733
    Maximum Bitrate Robby BMW's Avatar
    Join Date
    Aug 2005
    Location
    Italy
    Posts
    558
    Quote Originally Posted by Dj-[NRG] View Post
    Hey Robby,

    i tried to pair again, waiting longer and putting the receiver closer to my tires (+- 40cm), however, i was still unable to pair em...

    i guess the only thing left i can do is make that antenna thing?

    Greetz

    Dj NRG
    It's really strange that even one sensor is not been coupled, it sounds like your receiver doesn't work or has some problem.
    If you wish, I can check your interface, please send me a PM.
    _______________________________________
    Car installation 95% [■■■■■■■■■■■■■■■■■■■]
    Current project: Parking sensor USB interface

  4. #734
    Low Bitrate
    Join Date
    May 2008
    Posts
    69
    Robbie, I'm hoping you can help me out.

    I've got some boards and your PIC's from LYTSPEED and recently got my 3RD Eye kits and put them all in place, but I'm not sure on what I should be seeing.

    I've downloaded your TPMS Doctor and it seems to see the sensors, but I can't really tell.

    I've put one of the sensors into a small sprayer so I can pump it up to simulate pressure in the tyre as I don't want to mount it on the car yet.

    1 of the sensors shows 1.8psi, the other 3 show - .4psi which in itself is interesting since that means they're in vacuum, but it's so small I'm not worried.

    When I try and run the TPMS config tool and select pair, then pump up the sensor, nothing happens........... I don't know why one sensor shows higher than the others.

    Only thing I can think of is that when I was soldering the boards in place, there was a resistor I think in the place where one of the pins from the PCB needed to be soldered. I'm not sure if I need to solder on one side or the other side of this resistor, I'll show a picture below........

    Can you tell me the best process I can go through to test my sensors.

    I have 3 kits in total, 3 USB interfaces and 12 sensors to sort out.


  5. #735
    Maximum Bitrate
    Auto Apps:loading...
    _Dejan_'s Avatar
    Join Date
    Jul 2007
    Location
    Slovenia
    Posts
    571
    1.) Do you use latest TPMS doctor and learning tool?

    2.) Did you try clear data?

    3.)Try learn sensor which show you 1.8psi to other location. Maybe is sensor defect...

    4.) About resistor, If I remember I have connection trough resistor but Im not shure, I think here in this thread are Robby say if is important to make connection on both side of resistor. Maybe if you quick check pages you will find this...

  6. #736
    Low Bitrate
    Join Date
    May 2008
    Posts
    69
    1) Yes used the latest versions
    2) How do you clear the data ? It's not obvious
    3) I'll try this and see what happens....
    4) I've had a read through all of the pages, but couldn't see anything obvious.

  7. #737
    Maximum Bitrate bes51659's Avatar
    Join Date
    Sep 2005
    Location
    Vasastaden, Stockholms Län, Sweden, Sweden
    Posts
    852
    You've should have found how to reset values with TPMSDoctor.

    I've also read thru the pages and put links to the most interesting posts at bottom of page. Amongst other things how to reset learning and data.

  8. #738
    Maximum Bitrate
    Auto Apps:loading...
    _Dejan_'s Avatar
    Join Date
    Jul 2007
    Location
    Slovenia
    Posts
    571
    2) Hold Shift button on your keyboard then click Robby's logo.

  9. #739
    Low Bitrate
    Join Date
    May 2008
    Posts
    69
    Wow thank you so much bes51659, that is very very useful, I'll give this a go tomorrow and see how I get on.

  10. #740
    Maximum Bitrate Robby BMW's Avatar
    Join Date
    Aug 2005
    Location
    Italy
    Posts
    558
    Quote Originally Posted by f1racr View Post
    Robbie, I'm hoping you can help me out.

    I've got some boards and your PIC's from LYTSPEED and recently got my 3RD Eye kits and put them all in place, but I'm not sure on what I should be seeing.

    I've downloaded your TPMS Doctor and it seems to see the sensors, but I can't really tell.

    I've put one of the sensors into a small sprayer so I can pump it up to simulate pressure in the tyre as I don't want to mount it on the car yet.

    1 of the sensors shows 1.8psi, the other 3 show - .4psi which in itself is interesting since that means they're in vacuum, but it's so small I'm not worried.

    When I try and run the TPMS config tool and select pair, then pump up the sensor, nothing happens........... I don't know why one sensor shows higher than the others.

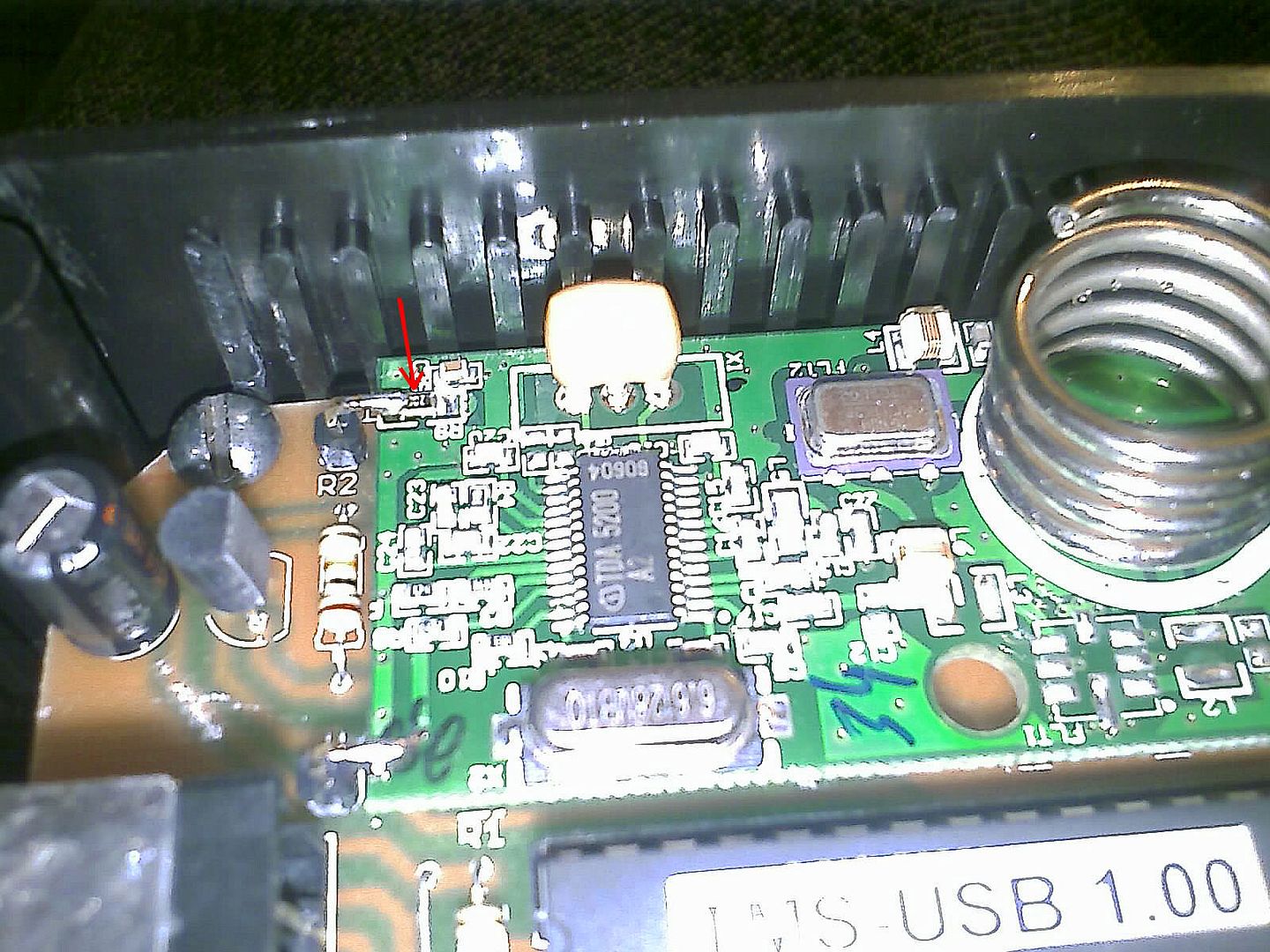

    Only thing I can think of is that when I was soldering the boards in place, there was a resistor I think in the place where one of the pins from the PCB needed to be soldered. I'm not sure if I need to solder on one side or the other side of this resistor, I'll show a picture below........

    Can you tell me the best process I can go through to test my sensors.

    I have 3 kits in total, 3 USB interfaces and 12 sensors to sort out.


    You should remove the small resistor and solder JP1 on both sides.
    _______________________________________
    Car installation 95% [■■■■■■■■■■■■■■■■■■■]
    Current project: Parking sensor USB interface
