Thread: uSDC problems in my NSX (with pix and video)

  1. #1
    Newbie
    Join Date
    Apr 2005
    Posts
    44

    uSDC problems in my NSX (with pix and video)

    I'm having issues using the uSDC in my car. Here's the situation...



    Battery +12v goes straight into the uSDC with 10 gauge wire on the right. Accy +12 comes in to the uSDC with 18 gauge wire, and provides voltage when key is in ON or ACCY mode (no voltage during crank). Ground goes from uSDC to the inverter's GND connector, then into a ground point of the vehicle, all 10 gauge. VOut of the uSDC goes to the +12 of the inverter with 10 Gauge wire - the other 10 gauge going from the positive pole of the inverter is fed to a Xenarc 700TSV LCD touchscreen. Nothing is connected to the pin header of the uSDC.

    When I turn on the car, with the inverter off, the uSDC appears to behave normally - that is, it provides power for the screen, and when the car is turned off, delays for a while before cutting power. Voltage at VOut is a solid at ~12.4 Volts.



    However, when I power on the inverter, voltage at VOut drops to 11.8V, and the Shuttle XPC conencted to the inverter attempts to boot, but reboots every 30 or so seconds. The relay constantly clicks at about 1HZ. When the car is turned off, instead of delaying before power-off, the uSDC cuts power almost immediately. The LED on the uSDC is on solid, but will flash a few times when I power up the inverter..



    Here's a video of the failure mode described - i turn on the car, voltage looks good, manually power on the inverter, voltage drops, power on pc, turn off car, uSDC shuts down too quick.
    http://logarhythm.net/usdc/usdc.mp4

    I had the same wiring setup in the cabin last week, with what I think would be a way better ground, and had the same failure mode. Is this indicative of a bad ground or other connection? Prior to the shuttle i was using a Mocha PC, which died immediately after the install of the uSDC. Dunno if that's related, but I do know that it worked fine when the inverter was connected directly to the battery without the uSDC. Now its a worthless brick, but i've moved past a proprietary form facter and have resolved to install the PC in the trunk instead of the glovebox. Please help me finish my project, I'm going on a trip this weekend and would love to have this working!

    -Josh

  2. #2
    FLAC
    Join Date
    Apr 2001
    Location
    Portland OR
    Posts
    1,244
    This is great info!

    I am still a little confused about the clicking. The uSDC is clicking? But the inverter is still on as it is clicking?
    MPEGBOX - Plexiglass Computer
    www.mpegbox.com

  3. #3
    Newbie
    Join Date
    Apr 2005
    Posts
    44
    Yep, the uSDC's relay clicks pretty regularly, but the inverter appears to be 'on' and providing power. You can hear it in the video if you listen carefully.. the other sound you can hear that is similar to an airplane is the inverter's fan, but the click is perceptible over that. In case you aren't hearing audio on that video I linked to, try using Quicktime - it'll play the video and audio, while when I use VLC to play it I only get video..

    The LED is on solid almost all the time, but it did do the flashy thing, i think when i first turned on the inverter, and also i think when I turn off the car..

    -Josh

  4. #4
    FLAC
    Join Date
    Apr 2001
    Location
    Portland OR
    Posts
    1,244
    Hi,

    Inverters are a pain in the ***. I think one thing that would solve your problem would be to use a 7AH Gel Cell battery right next to the uSDC. I was able to re-create a similar problem where the unit trys to come on but the inrush current is so high that it just trips the low voltage cutoff in the inverter.

    I just went to GI Joes and got a 400 watt inverter. They didn't have the coleman like you had. I got a xantrex.

    Another thing to try is to make sure the uSDC connectors are soldered on good to the circuit board. I recieved one for warrenty work that had its connectors unsoldered so they would wiggle back and forth.

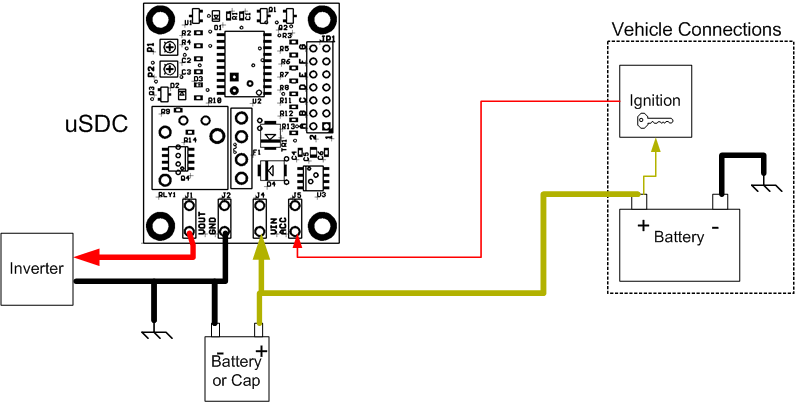

    I'll draw a paint of what you can do to help it..

    -Jeff
    MPEGBOX - Plexiglass Computer
    www.mpegbox.com

  5. #5
    FLAC
    Join Date
    Apr 2001
    Location
    Portland OR
    Posts
    1,244
    MPEGBOX - Plexiglass Computer
    www.mpegbox.com

  6. #6
    Maximum Bitrate phat_bastard's Avatar
    Join Date
    Sep 2002
    Location
    St.Louis, MO
    Posts
    549
    I'm having the exact same problem.

    Quote Originally Posted by zootjeff
    Inverters are a pain in the ***.
    Evidently only for the uSDC. My system wouldn't survive a crank with the uSDC, but without it's been working fine.

    Quote Originally Posted by zootjeff
    I think one thing that would solve your problem would be to use a 7AH Gel Cell battery right next to the uSDC. I was able to re-create a similar problem where the unit trys to come on but the inrush current is so high that it just trips the low voltage cutoff in the inverter.

    I'll draw a paint of what you can do to help it..
    The problem with this is that unless you turn it into a tank circuit with a diode, you're not going to accomplish much of anything. Contact me offline Jeff, I want to talk to you about this.
    '01 Chevy Xtreme Stepside (pics)

    FIC K7MNF-64 / Athlon 3200 | 256 DDR | 120 GB 7.2k WD
    WinXP Pro | MediaEngine | 12.1 VGA TFT Touch|Creative CIMR-100
    350w Vector | 320w mATX PS | Hellroaring BIC95150 | ButterflySDC

  7. #7
    Mo' Programming Mo' Problems
    Auto Apps:loading...
    Sonicxtacy02's Avatar
    Join Date
    Sep 2004
    Location
    Woodbridge, VA
    Posts
    8,169
    Blog Entries
    53
    hmmm another one with relay clicking probs. Maybe together we can come up for a reason that the relay would click more than once when the constant ACC is applied. For the life of me i cant understand why everything works, power is crisp and steady, but the relay switches teh computer on and off several times. Gonna go do some more testing with mine now

  8. #8
    Mo' Programming Mo' Problems
    Auto Apps:loading...
    Sonicxtacy02's Avatar
    Join Date
    Sep 2004
    Location
    Woodbridge, VA
    Posts
    8,169
    Blog Entries
    53
    Ok results.... my computer just doesnt like it when the car is running . It works fine when the key is turned to ACC... but when i turn the ignition the problems begin. Power after cranking stays right at 13.8, no spikes or anything. I've tried with B jumpered and it does the same thing. I even connected the ACC to a constant power wire to test if maybe it was the connection behind the radio and its giving me the same problem. What could possibly cause this issue? If this is a new SDC you sent the POT 2 should still be at 11v, the power never drops below 12v.

  9. #9
    FLAC
    Join Date
    Apr 2001
    Location
    Portland OR
    Posts
    1,244
    Quote Originally Posted by Sonicxtacy02
    Ok results.... my computer just doesnt like it when the car is running . It works fine when the key is turned to ACC... but when i turn the ignition the problems begin. Power after cranking stays right at 13.8, no spikes or anything. I've tried with B jumpered and it does the same thing. I even connected the ACC to a constant power wire to test if maybe it was the connection behind the radio and its giving me the same problem. What could possibly cause this issue? If this is a new SDC you sent the POT 2 should still be at 11v, the power never drops below 12v.

    I bought a 400 watt inverter and a 140 watt inverter. When I use my 400 watt inverter inside with my 25 amp AC-DC 12 volt power supply, the inverter surge current causes my bench supply to trip and shutdown. the 140 watt inverter doesn't seem to have this problem. My 400 watt inverter has a 40 amp fuse, the USDC20D only has a 20 amp fuse..

    Do you know how much power your system is drawing?
    MPEGBOX - Plexiglass Computer
    www.mpegbox.com

  10. #10
    FLAC
    Join Date
    Apr 2001
    Location
    Portland OR
    Posts
    1,244
    Quote Originally Posted by Sonicxtacy02
    Ok results.... my computer just doesnt like it when the car is running . It works fine when the key is turned to ACC... but when i turn the ignition the problems begin. Power after cranking stays right at 13.8, no spikes or anything. I've tried with B jumpered and it does the same thing. I even connected the ACC to a constant power wire to test if maybe it was the connection behind the radio and its giving me the same problem. What could possibly cause this issue? If this is a new SDC you sent the POT 2 should still be at 11v, the power never drops below 12v.
    I wish you lived in Oregon.. :-(

    I tested it with my bench supply and a 12 volt battery. Having the battery helped when using the 400 watt inverter. It worked just fine with the 140 watt inverter.
    MPEGBOX - Plexiglass Computer
    www.mpegbox.com
