    03 VW Jetta GLI

    I've been looking over these threads for the past couple months and I have a troublesome dichotomy brewing inside :

    Can I justify spending the cash on this project when it could be a future house payment ? Can I justify spending the cash on this project when I just spend $1300 on winter wheels and tires for both my wife's car and my own car ? I know the project will bring me great satisfaction.

    I'm going to do it anyway !!!

    --------------------------------------------------------------

    Here's the whip:

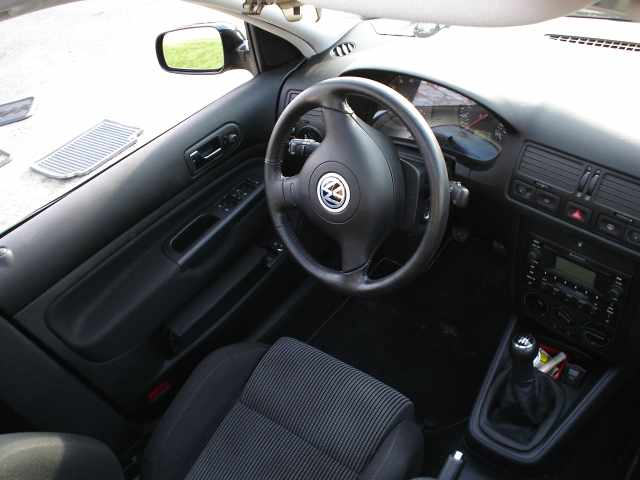

    You can see where I'm going to install the LCD - the stock double DIN slot. Much similar to the main image on the mp3car.com index page.



    The project is underway and I hope to have Phases 1-2 complete by April '06 and Phase 3 complete by August '06.

    --------------------------------------------------------------

    Phased Approach :

    Phase 1
    5 Volt Voltage Regulator ----- COMPLETE (1/06)
    Ground Loop Isolator --------- COMPLETE (1/06)
    Adapter - Headphone to RCA - COMPLETE (1/06)
    Project Box ------------------ COMPLETE (1/06)
    RCA Connectors - Female (2) - COMPLETE (1/06)
    Monsoon Amp Wiring Harness

    Phase 2
    Extension Cable - VGA
    Extension Cable - USB 2.0
    Touchscreen 7" (diag.)
    Remote Power On/Off Device - COMPLETE (1/06)
    Wireless 802.11g NIC - COMPLETE (USB Stick) (1/06)
    Wireless 5db Antenna

    Phase 3
    USB Hub - 2.0 (PCMCIA Card 32 bit Type II(Maybe not compatible w/ current laptop))
    (I already have a USB 1.1 Hub (D-Link DSB-H4) Might get this Here
    Slot Loading DVD Drive
    Media Reader
    GPS - USB Tracking Device
    GPS - Software

    Phase 4
    Web Cam - USB
    XM/Sirius Satellite Radio Connection
    5.1 Surround Audio (Might move this to Phase 2)

    Phase 5
    OBD-II Port
    ???
    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  2. #2
    Newbie
    Join Date
    Dec 2005
    Posts
    5
    Quote Originally Posted by Hans Delbruck
    Questions :

    DVD Drive - can you run the remote DVD Slot Loading drive on USB 1.0 ?

    Is FrodoPlayer what I want to use as my Front End ?
    USB1.0 is 12 Mbps per channel, if there are no other devices on it, you will get <1.5 MBps

    from http://www.videohelp.com/dvd
    Single Layer (4.7GB) read speeds
    1x read speed is 1.321MB/s = ~56 minutes

    I would say that it is possible, but may not be the best option.

  3. #3
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14
    So I bit the bullet.

    I went into Radio Shack and bought some odds and ends to begin creating my Monsoon Project Box: (FAQ: Connecting your soundcard to a Volkswagen Monsoon Amp)

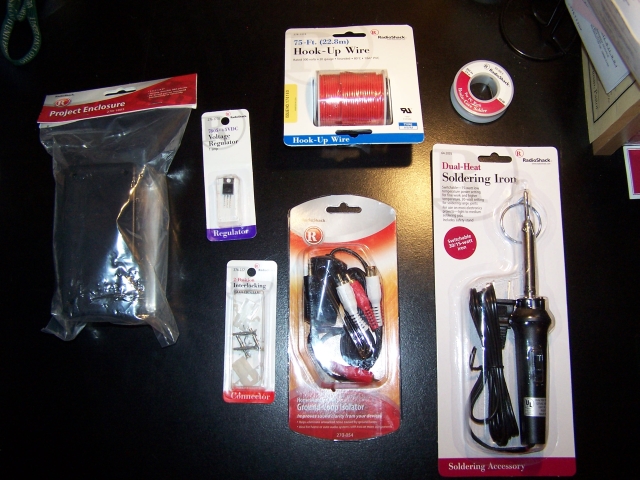

    I bought the following items :

    Soldering Iron (Dual Temp) $10.49
    Solder .050 $ 2.99
    Ground Loop Isolator $16.99
    5v Regulator $ 1.59
    Power Connectors (2-Position) $ 1.99
    Project Box (5" x 2 1/2" x 2") $ 3.69
    Coil of 20 GA Wire $ 4.99

    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  4. #4
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14

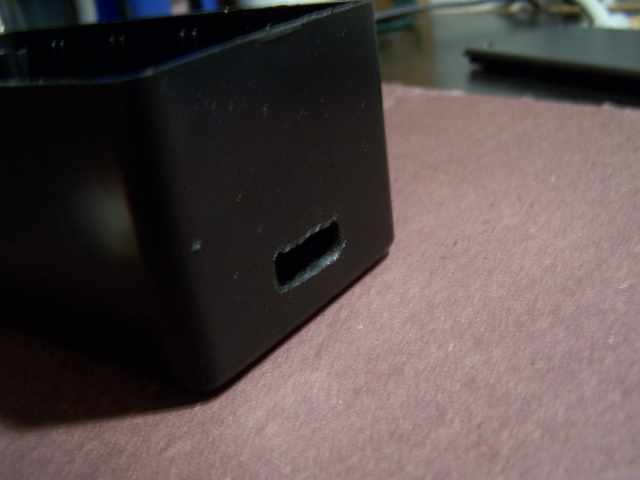

    Step 001 - Cut hole in project box for Power Connectors

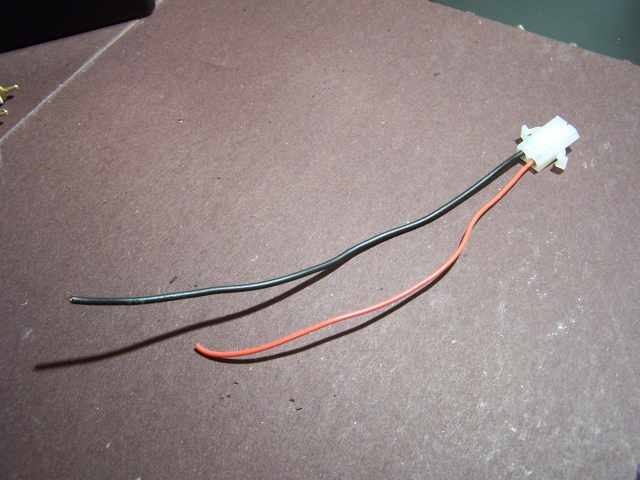

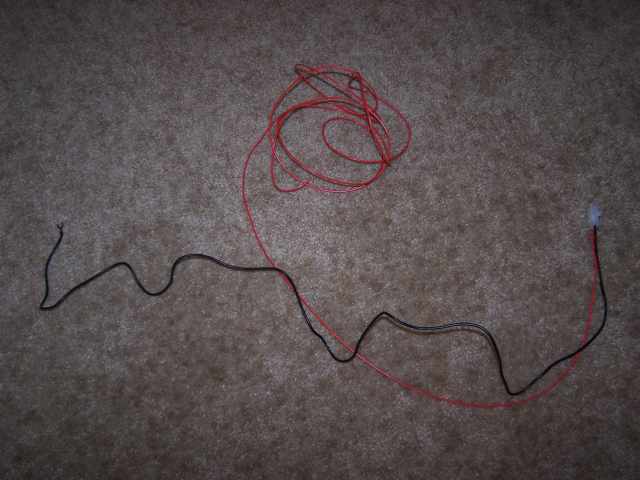

    Step 002 - Insert 12v and Ground wire into Internal Power Connector




    Step 003 - Insert 12v and Ground wire into External Power Connector
    12v cable will eventually connect to existing Remote Turn-on wire from Sub Amp

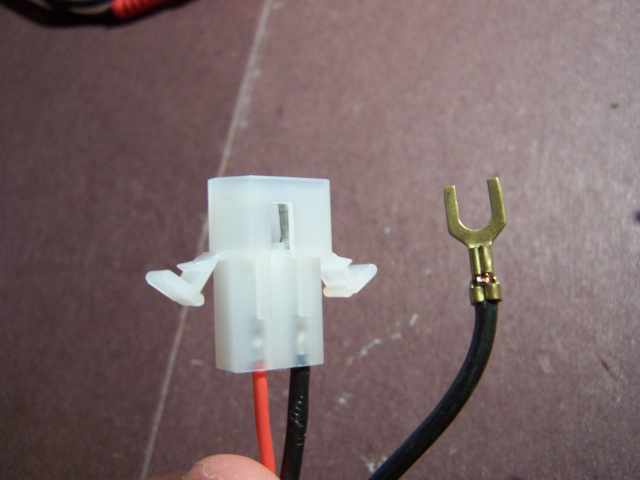

    Step 003a - Closeup of ground wire of external Power Connector

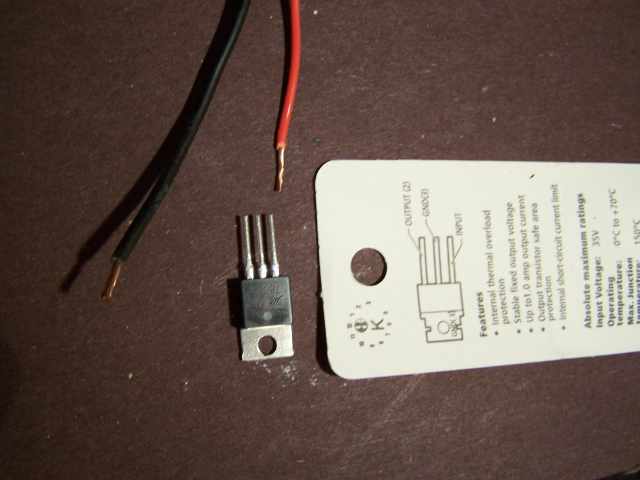

    Step 004 - Line up 5v Regulator with Internal Power Connector wires to begin soldering

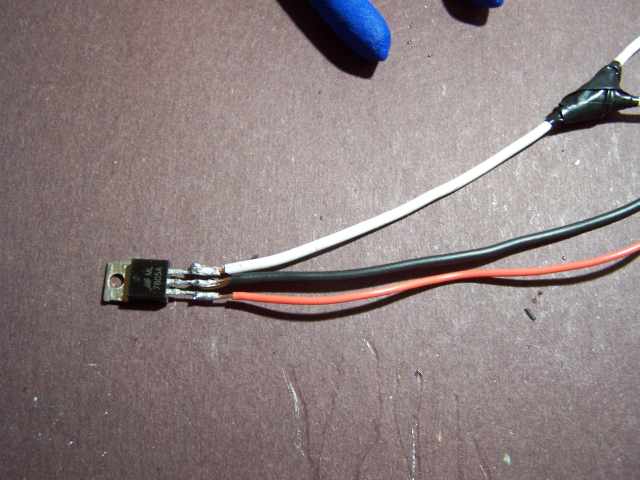

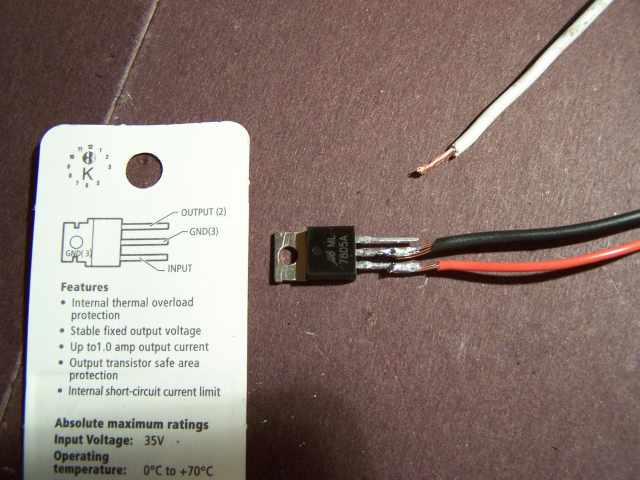

    Step 005 - Solder 12v and Ground wire to 5v Regulator

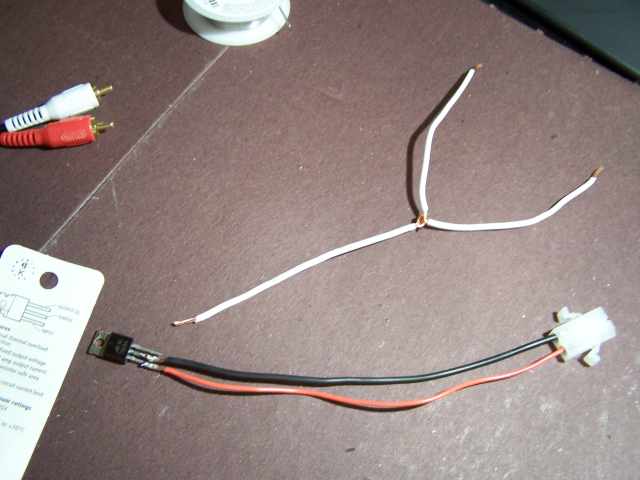

    Step 006 - Create 5v wire that splits into two wires that will connect to the negative portion of the female RCA connector




    Step 007 - Solder 5v wire to 5v Regulator

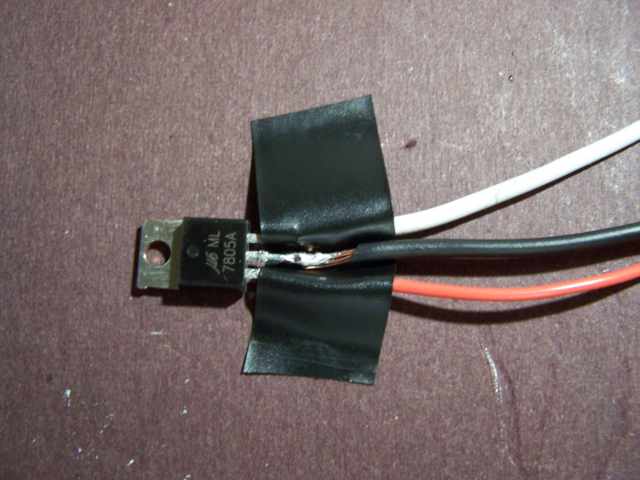

    Step 008 - Tape the three connections on the 5v Regulator to avoid any shorts.

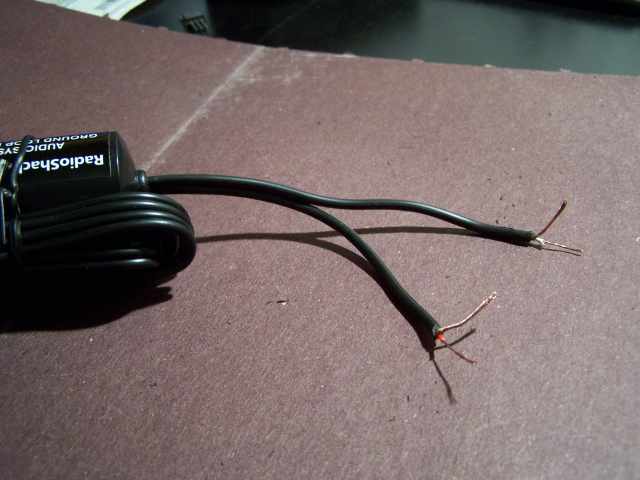

    Step 009 - Remove Male RCA Ends from the Ground Loop Isolator (All 4)




    Step 009a - Closeup of RCA Cable - Negative is on the outside of the cable and Positive is in the center.




    I need to get some more parts to finish the Monsoon Box.

    RCA Female connectors (x4) to provide connection to Amp and 1/8" Soundcard Jack.

    More to come after that...
    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  5. #5
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14
    Continuation...

    Got the parts ---

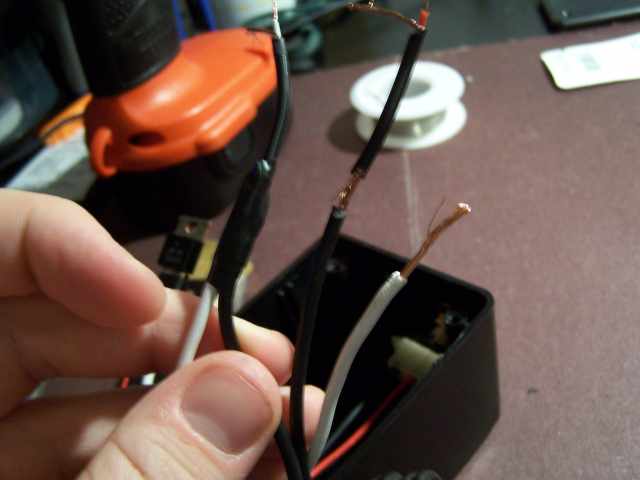

    Step 010 - Splice 5v Wire into the negative GLI wire

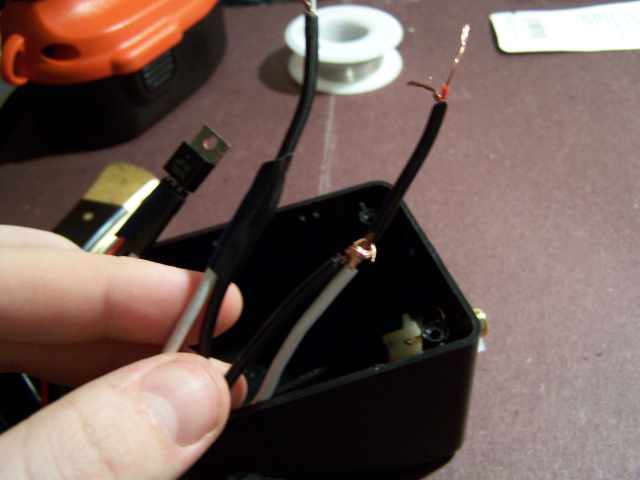

    Step 011 - Both 5v wires spliced in

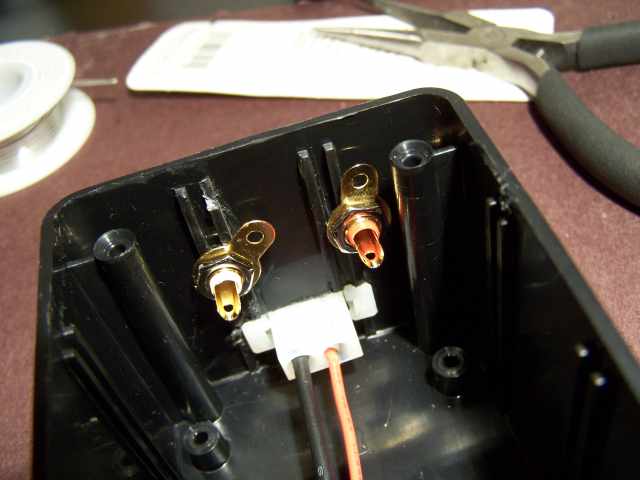

    Step 012 - Internal view of RCA jacks

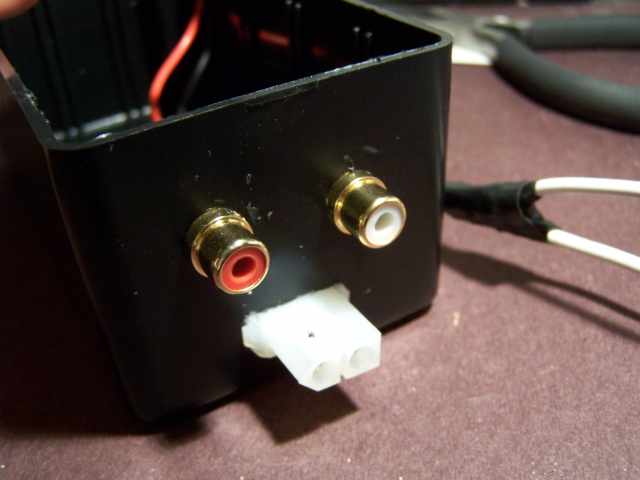

    Step 012a - External view of RCA jacks

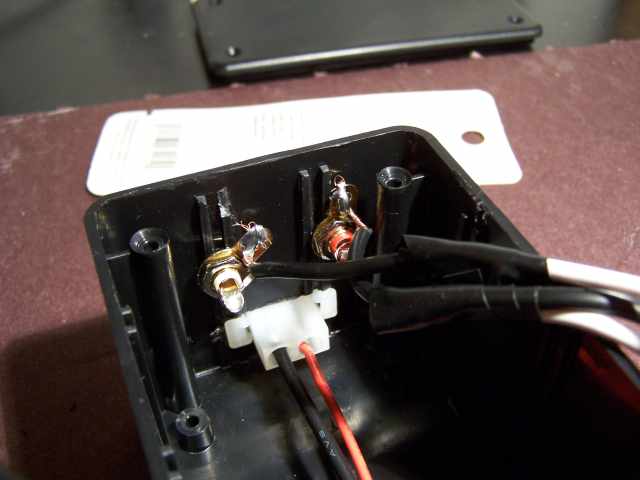

    Step 013 - Solder the Positive GLI wire to the center post and the Negative wire to the outside plate

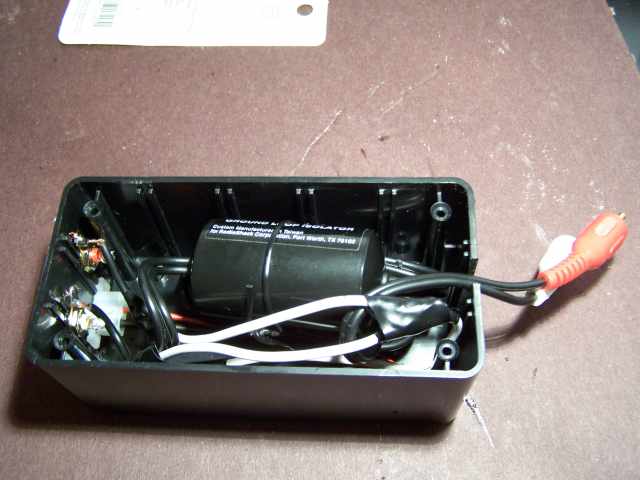

    Step 014 - Just needs a cover

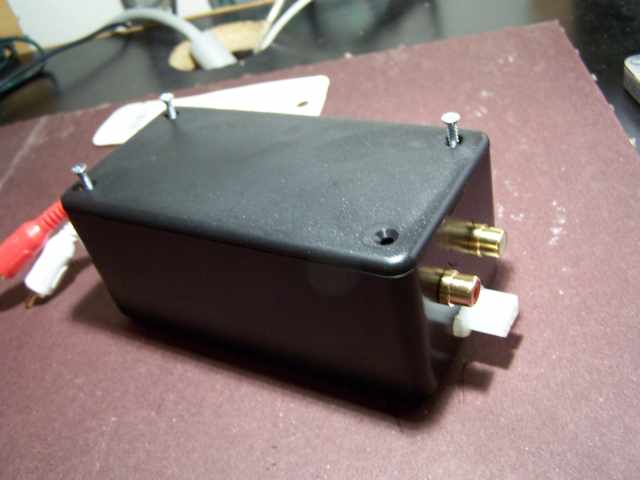

    Step 015 - COMPLETE !

    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  6. #6
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14
    This morning I tackled the task of how to get a "Remote Turn-on Solution."

    I was a bit worried as I had already tore apart my laptop previously, and hadn't seen an easy solution. Well it turns out that I gave up just a bit to easily.

    Thanks to help of mercydevoid :
    Remotely startup laptop...? (wake on lan)??

    I attempted to "jump" start the laptop by "shorting" two of the three connections to the manual power button and to my surprise, the very first two that I tried - SUCCESS !

    The next step was to solder a wire to each of these leads, run the wires out an opening in the rear of the laptop so they could be run to the front of the Jetta. I'm not sure what I'll use yet as the switch or toggle for these wires, and I'm up for any suggestions.

    So I tore apart the laptop again and got down to the nitty-gritty (****ed I didnt take a pic before I starting soldering) and after about 20 minutes of trying to solder a wire onto a 1 mm by 2 mm lead, I got both connected.

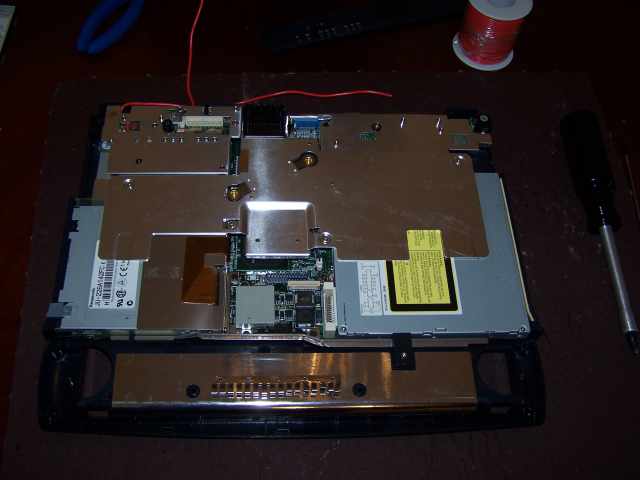

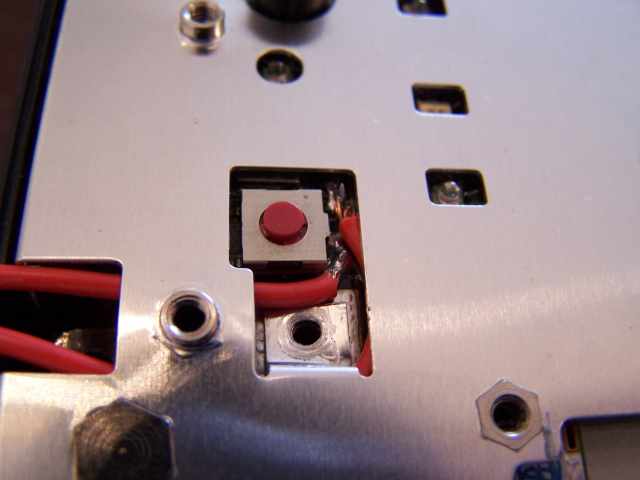

    As you can see here the top lead has it's own wire as does the bottom lead :

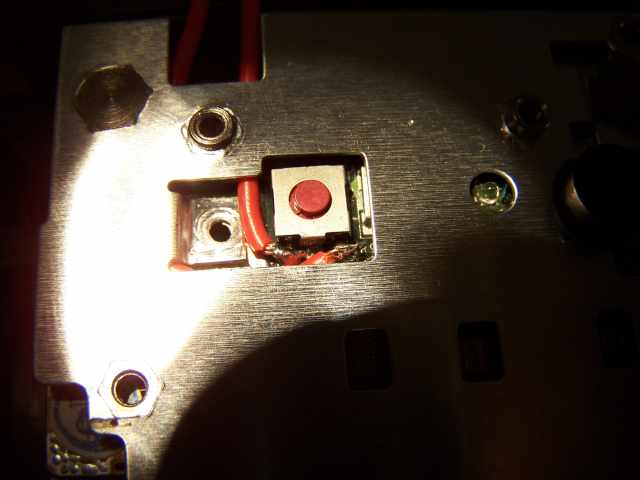

    Another from a different angle :



    Let the re-assemble begin :

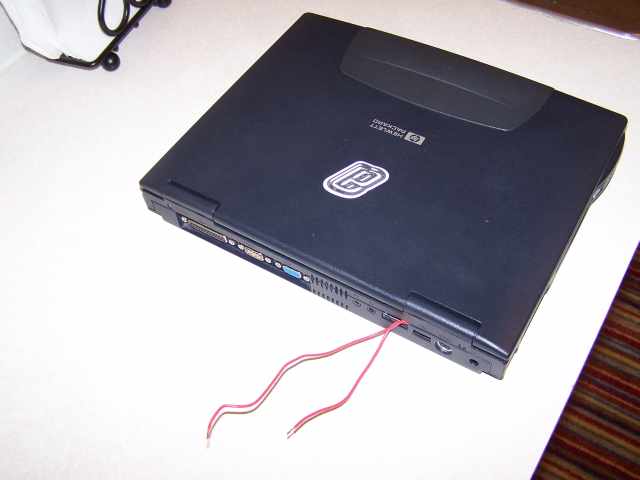

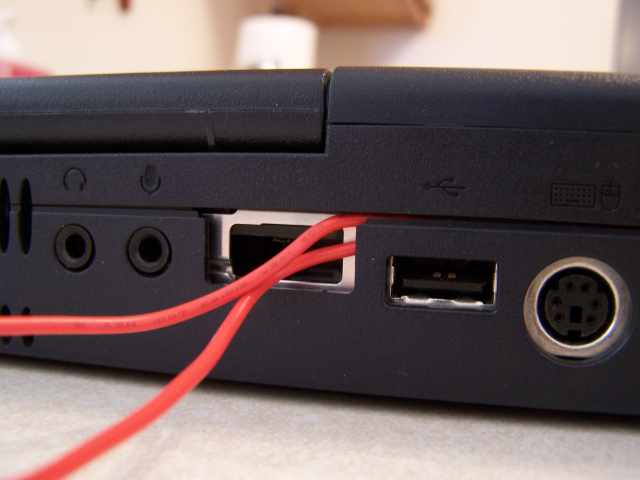

    Remote Turn-On Wires out the back :



    Close-up of Remote Turn-On Wires :



    The most important thing - I tested after re-assembly and it still works. The laptop sits there, you cross the wires and viola, it's booting up. It's probably nothing to get excited about, but i thought this would be one of my toughest obstacles. Well either way, the hard part of it is done, now I just need to decide on a tight way (simple and stealth) to implement it.
    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  7. #7
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14
    I think the project might resume. Once again, I'm at the crossroads.

    The options :

    Big screen TV
    OR
    CarPC

    I guess the thought process is that I've already got a TV, but I don't have a CarPC. Also, I'd like to think that I'll be able to get by with a budget of at least half of what I'd spend on a LCD Projection TV.

    Off the bat - I'll need the 7" Touchscreen display. It's kind of hard to think about the fact that I could buy a 50" LCD TV for $1000 but still pay $300 for a 7" LCD Touchscreen. Economies of scale do not apply.

    So, off a quick mental list, I'll need :

    Touchscreen - $300
    5.1 Soundcard - $80
    Slot-Loading DVD Drive - $80
    Misc - $140
    TOTAL - $600

    See if I can swing it.
    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  8. #8
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14
    Reserved 03>

    Useful Link ?

    http://forums.vwvortex.com/zerothread?id=676392

    No Login Required -
    Auto login in XP ?

    Diagram
    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  9. #9
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14
    Reserved
    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02

  10. #10
    Newbie
    Join Date
    Nov 2005
    Location
    Cleveland, OH
    Posts
    14
    Reserved B
    Luke
    '03 Jetta GLI

    System Progress
    {||..................} 10 %
    Worklog
    Current Project - Saving $$$ for Touchscreen - In Progress
    Total Thus Far - $30.02
